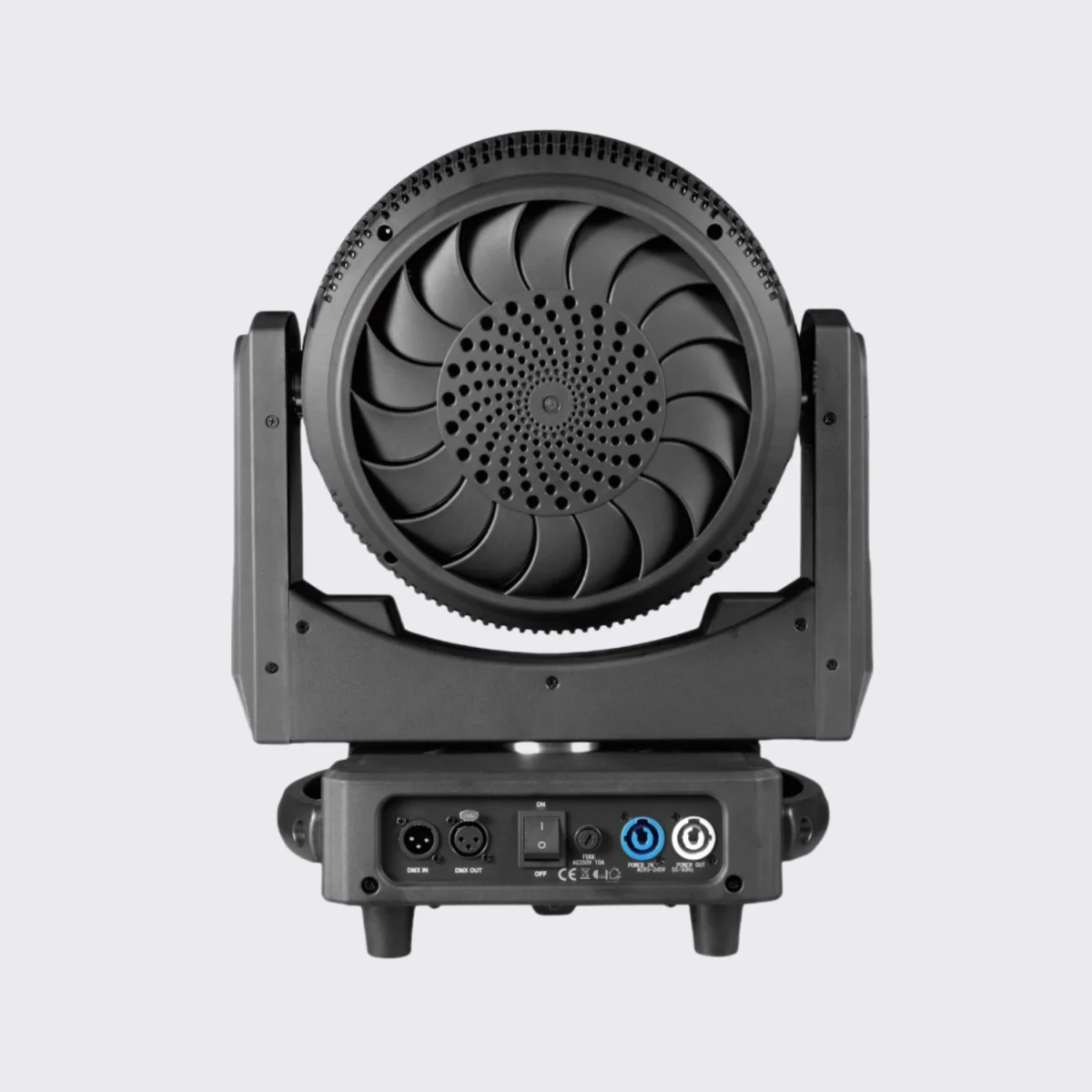

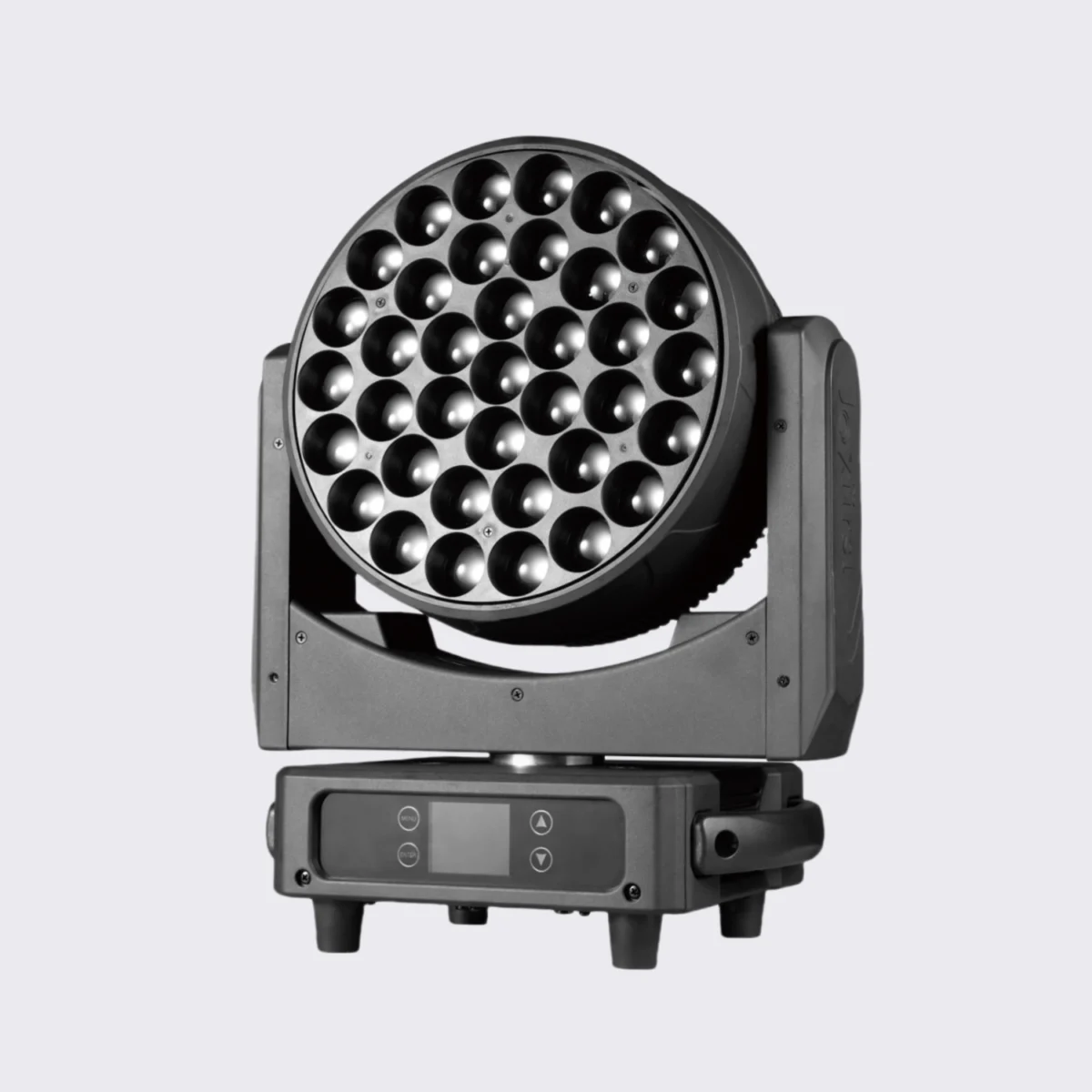

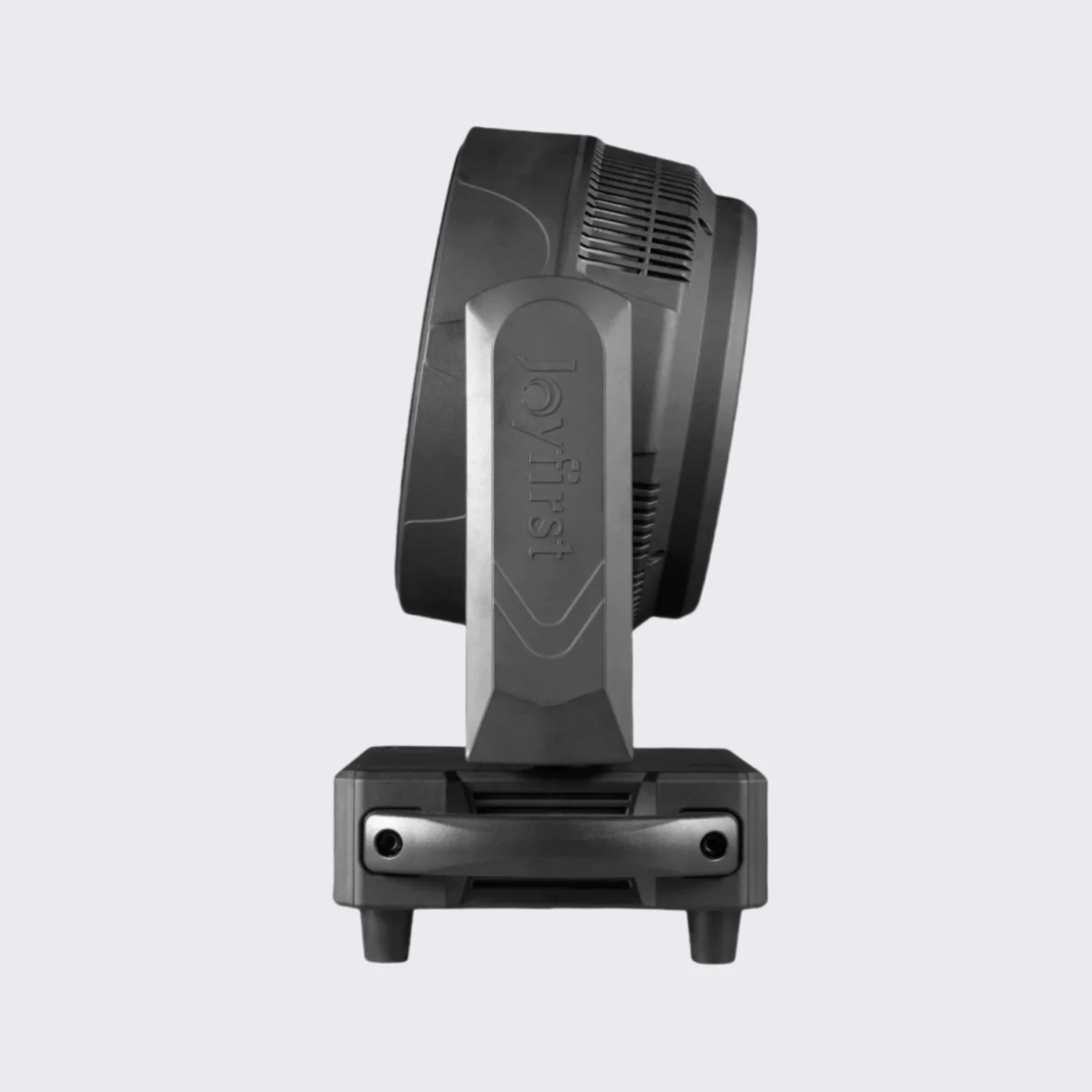

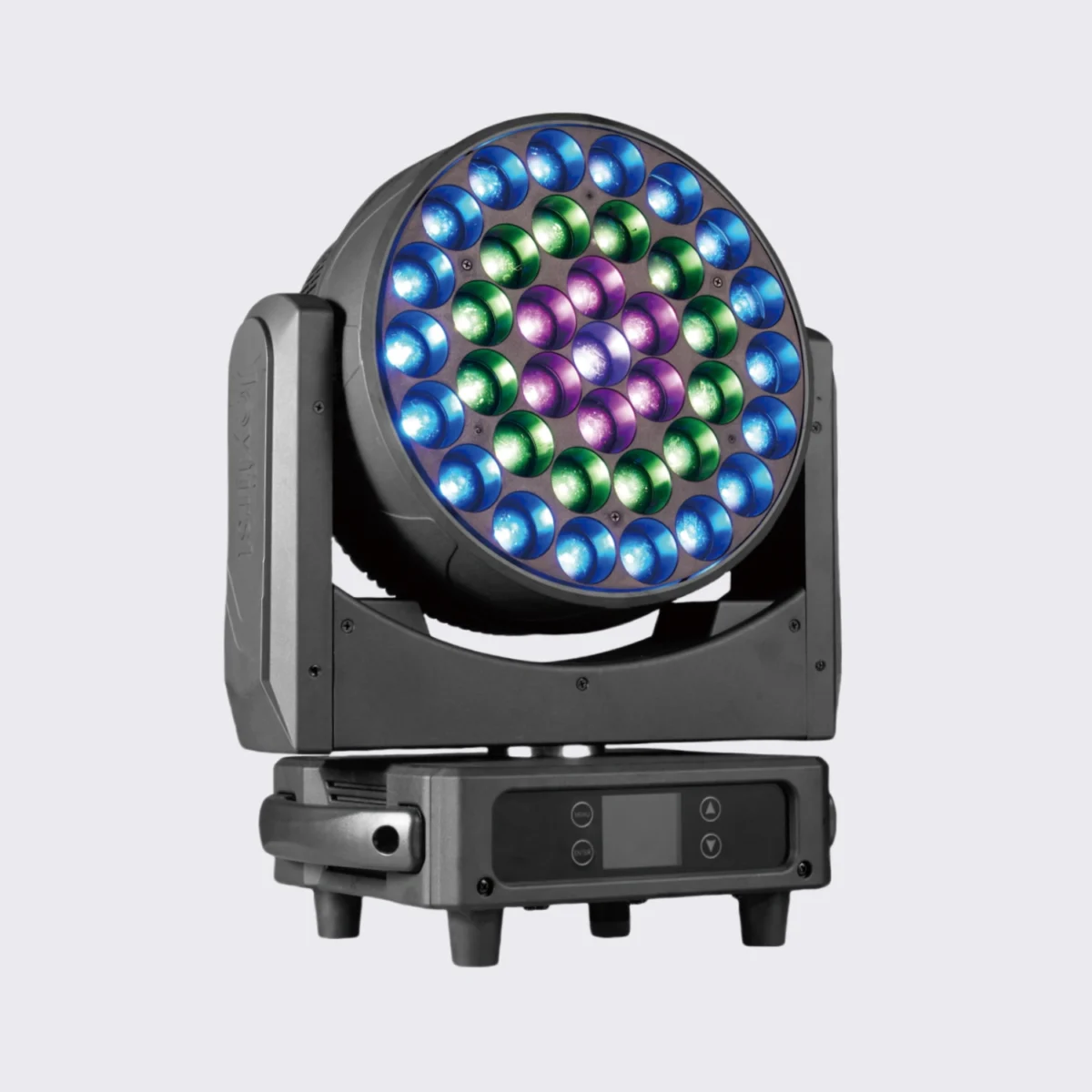

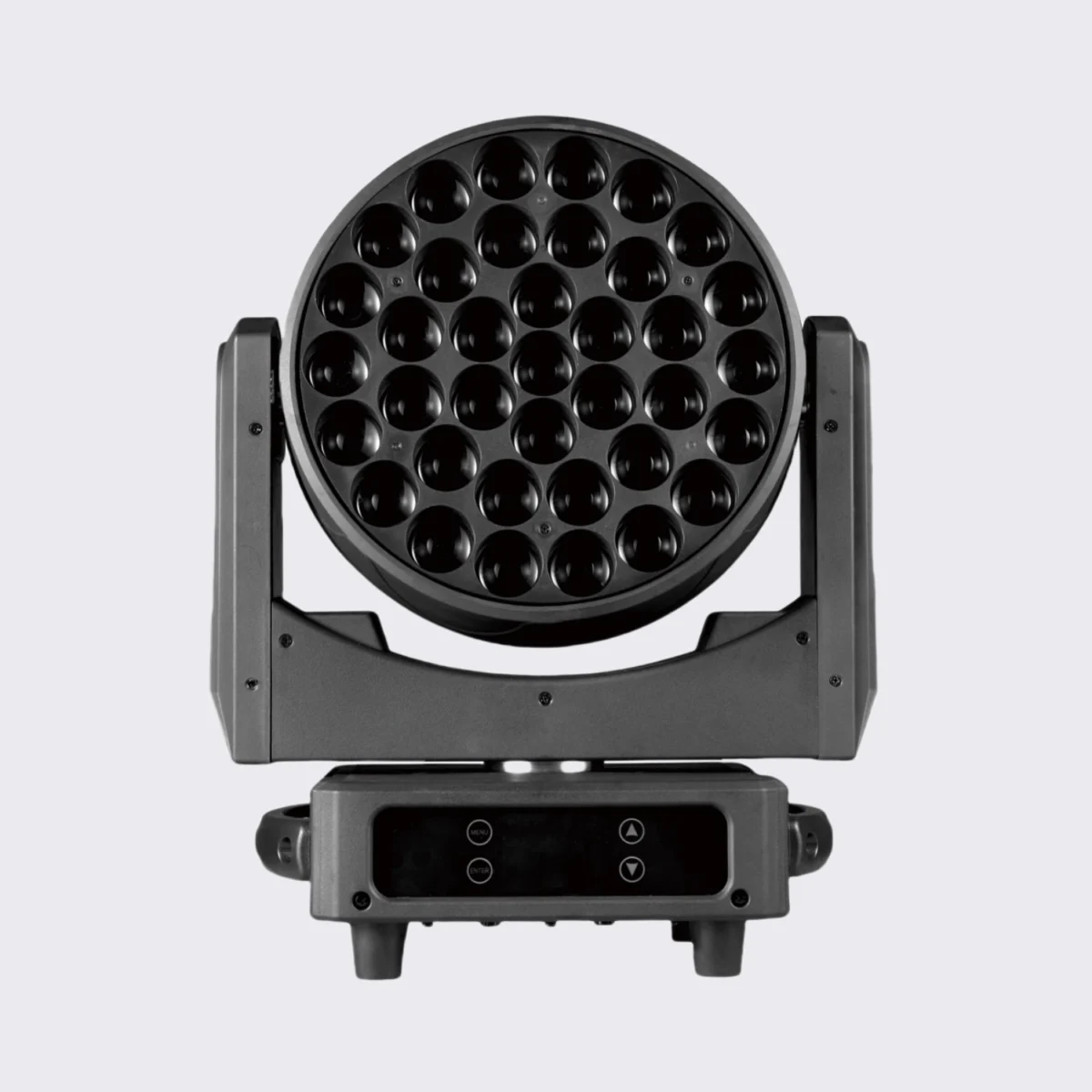

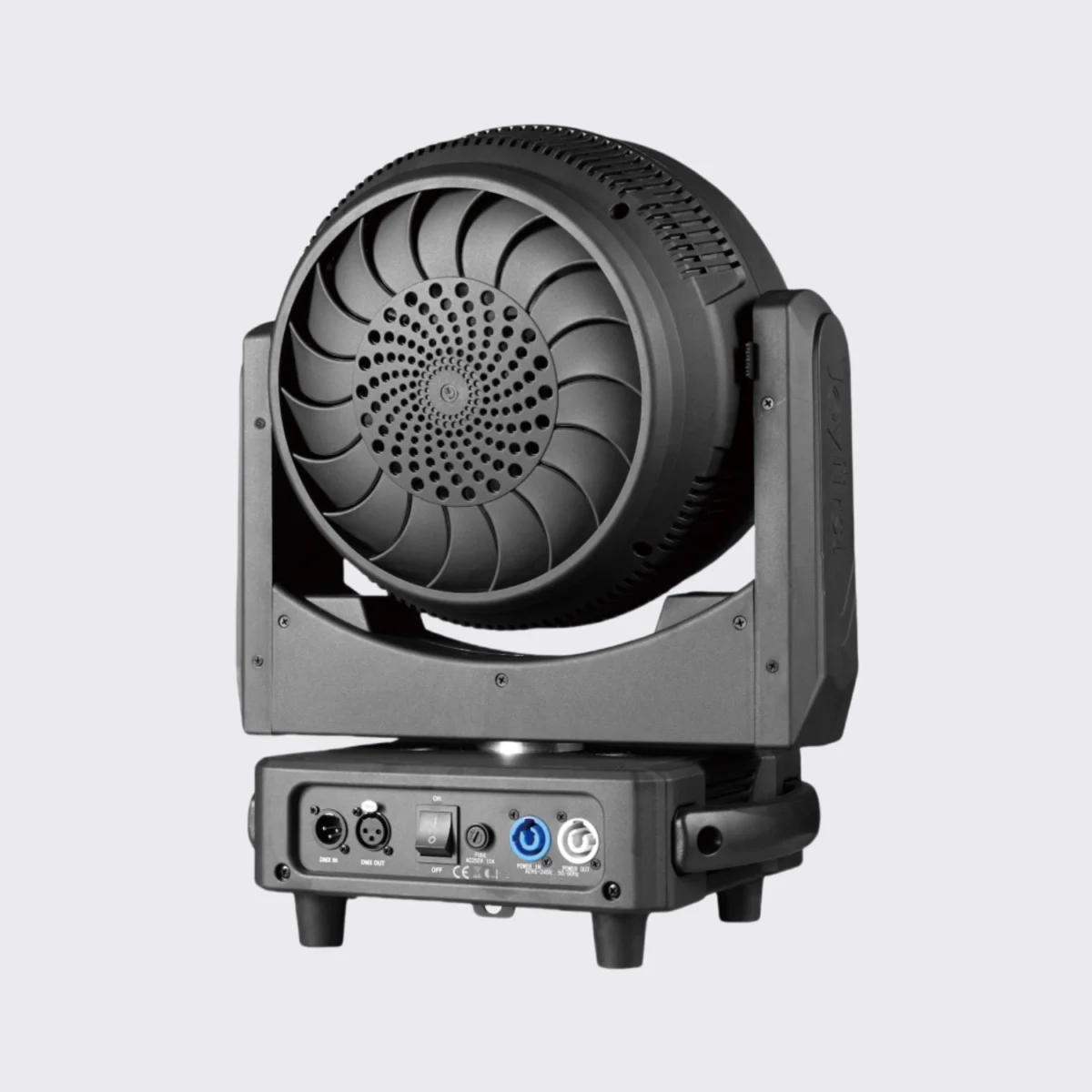

Joyfirst LED Mini 37x15W RGBW Zoom Wash Moving Head
New Private Model, Mini Moving Head Wash Light
- Light Source: 37 PCSx15W RGBW LED
- Temperature: 6000K
- Zoom Range: 5°-50°
Features
- Premium Quality
- Worldwide Shipping
Private mold, LED Mini Wash Moving Head
Product Parameters
| Input Voltage Range： | 110-240V 50/60Hz |
| Power Consumtion | 500W |
| Light Source | 37PCSx15W RGBW LED |
| Temperature | 6000K |
| Zoom Range | 5°-50° |
| PAN/TILT | Pan movement: 540° Tilt movement: 270° 16-bit precision scanning Automatic Pan/Tilt position correction |
| Dimming/Strobe | 0%~100% dimming stop/strobe effect with adjustable speed, dual channel with instantaneous power-off function for color temperature setting. Strobe: 1 /sec., Fast strobe: 25 /sec. |
| Control | Control channels：10/15/21/25/37/37+ Control protocol: DMX512, RDM Upgrade: Upgrade via DMX/USB connection |
| Structure | 4 touch buttons selection menu Display： LED 2.4G color screen Data in/out: 3-pin and 5-pin XLR Power outlets: straight outlet, power connector input, power connector input/output. Protection: IP20 |
| Key Features | Electronic linear zoom system It integrates powerful beam and dyeing functions with excellent color macro effect CTO: 2500K-8000K Outstanding strobe effect with variable speed 2 fixed folding hooks for 50mm truss with keyhole reserved for 70mm truss for removable hooks Maximum number of connections: 11 units at 230V and 50Hz, 5 units at 120V and 60Hz Suitable for stages, theatres, TV studios and dance halls |
| Size/Weight | Product dimensions: 369x292x395mm Package size: 490x350x620mm, 17kg(Carton included, one unit per carton） The flight case is one for two: 750x440x700mm, 65kg(Flight case included） |
