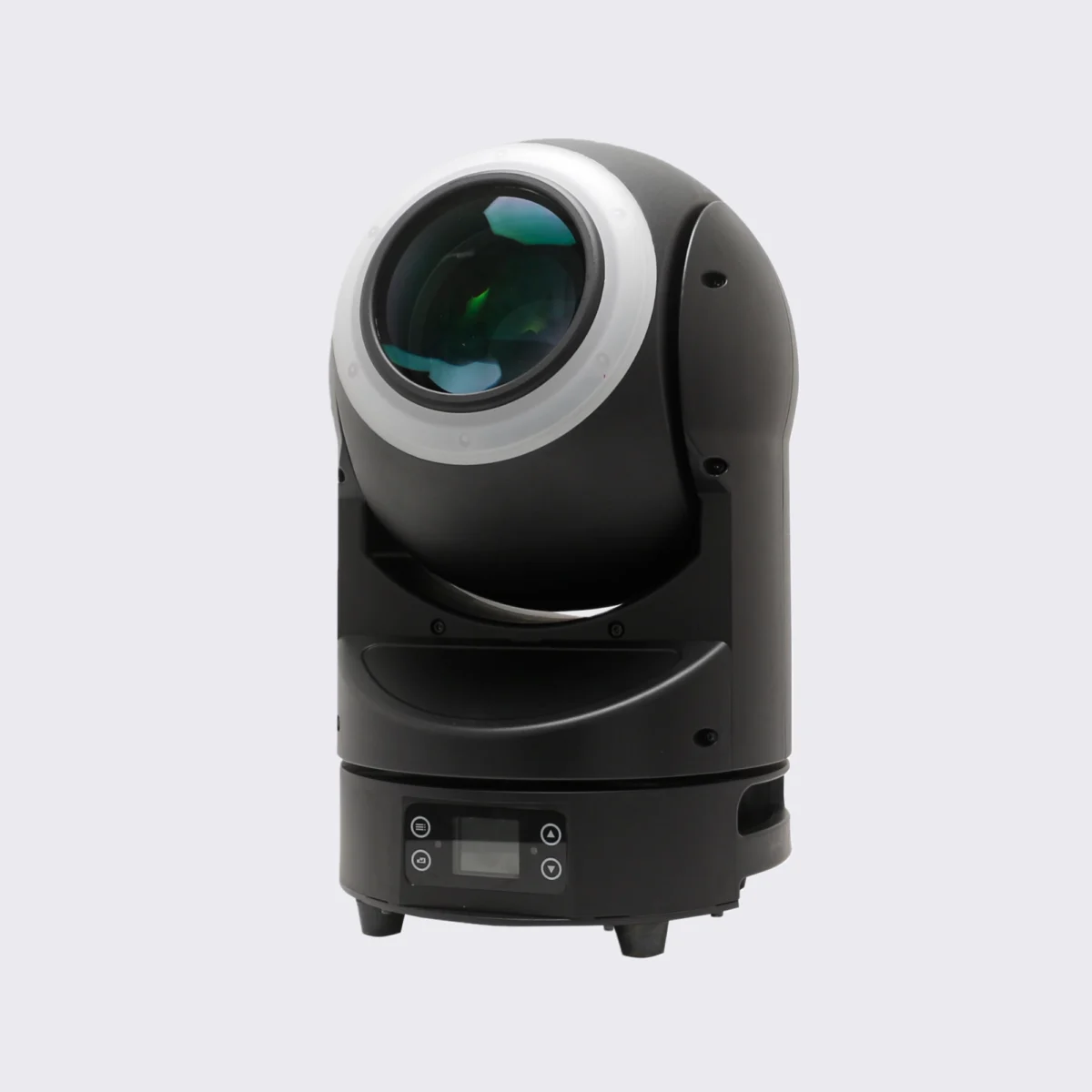

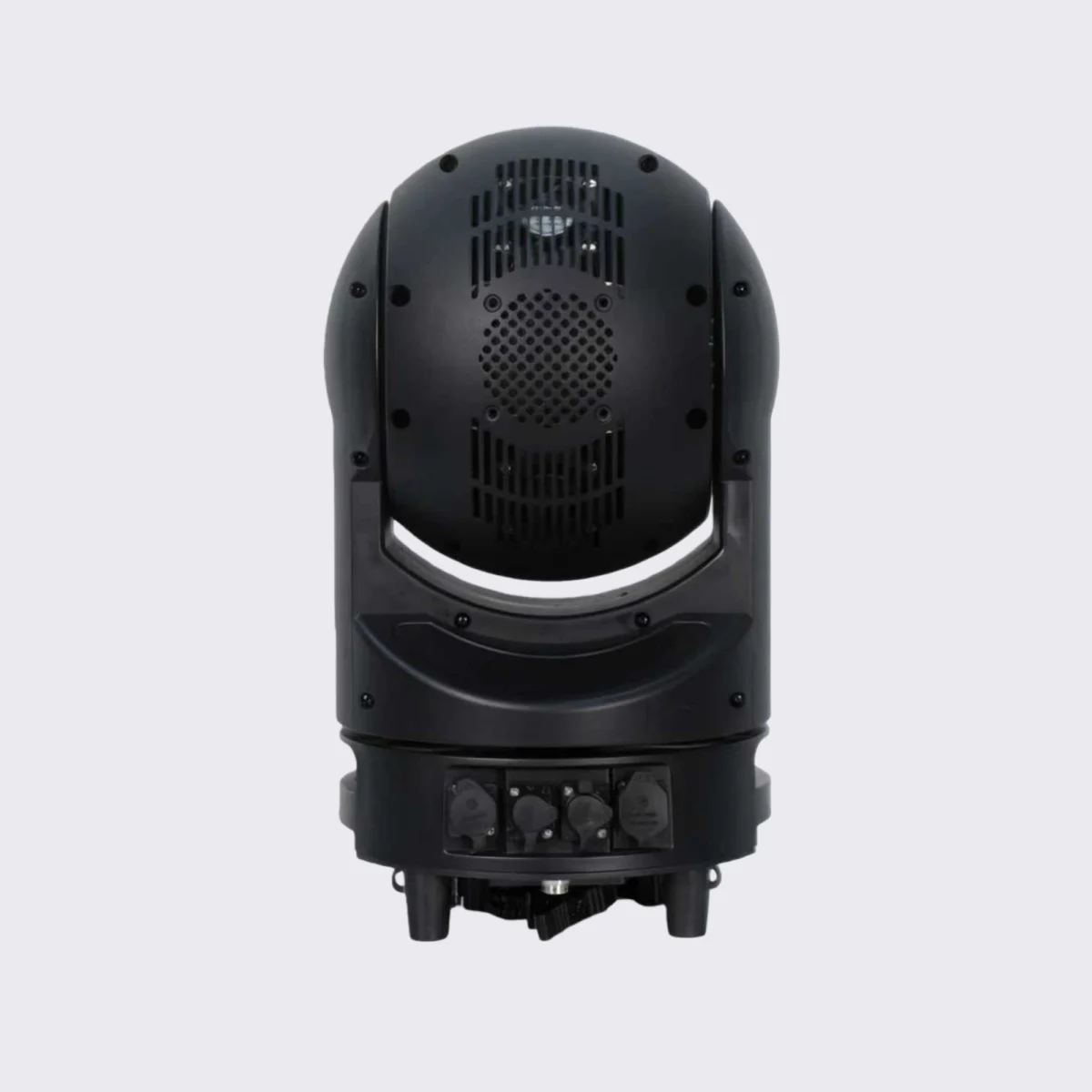

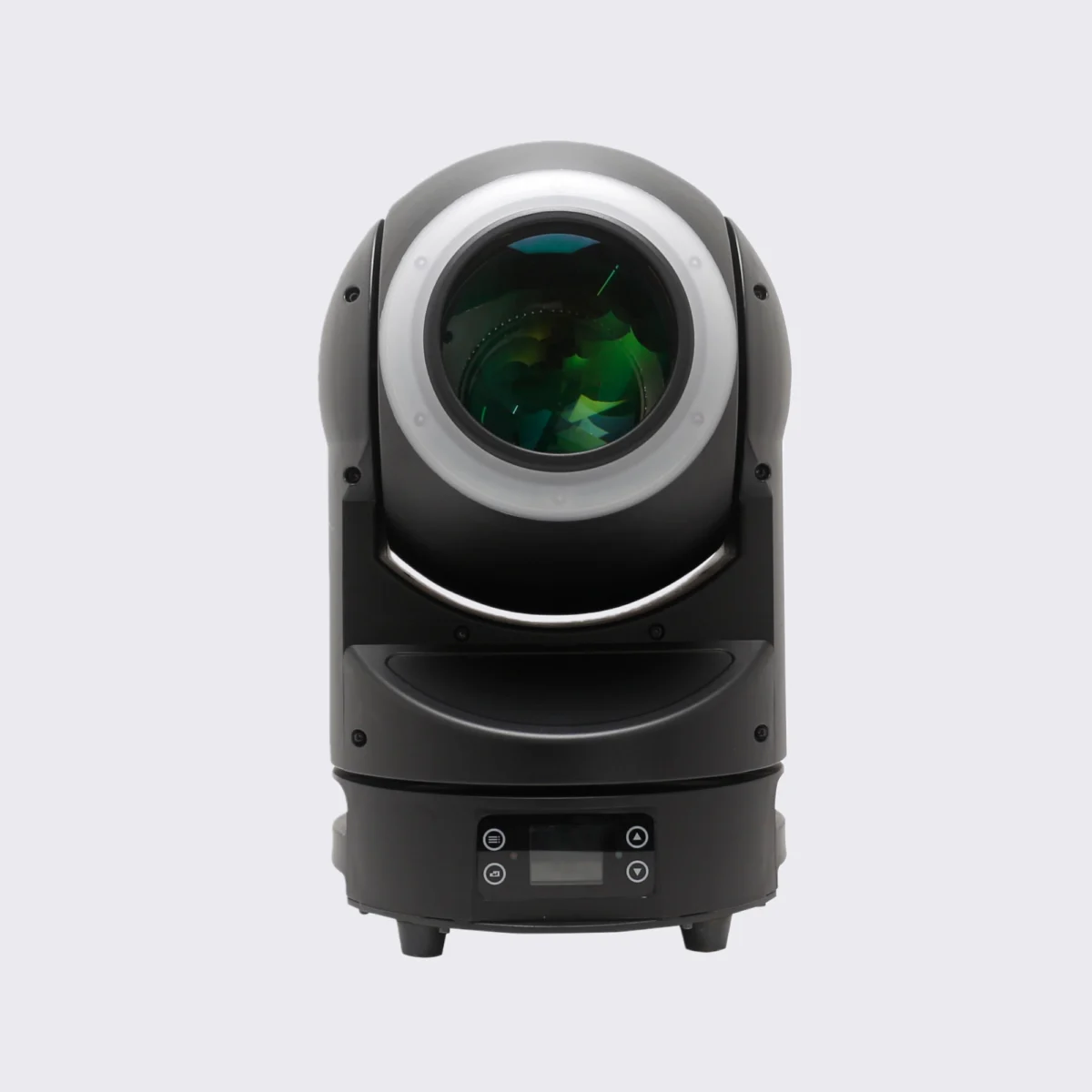

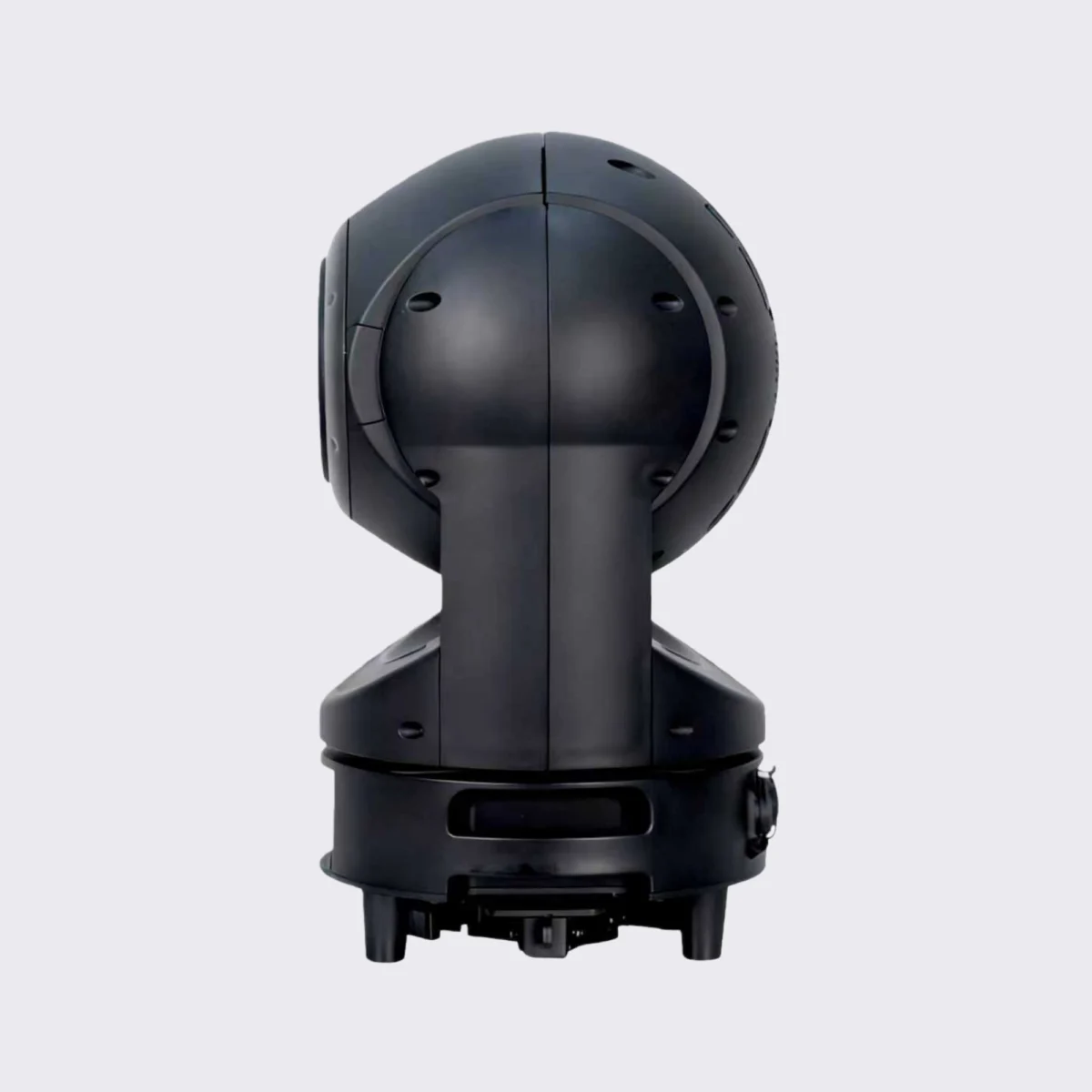

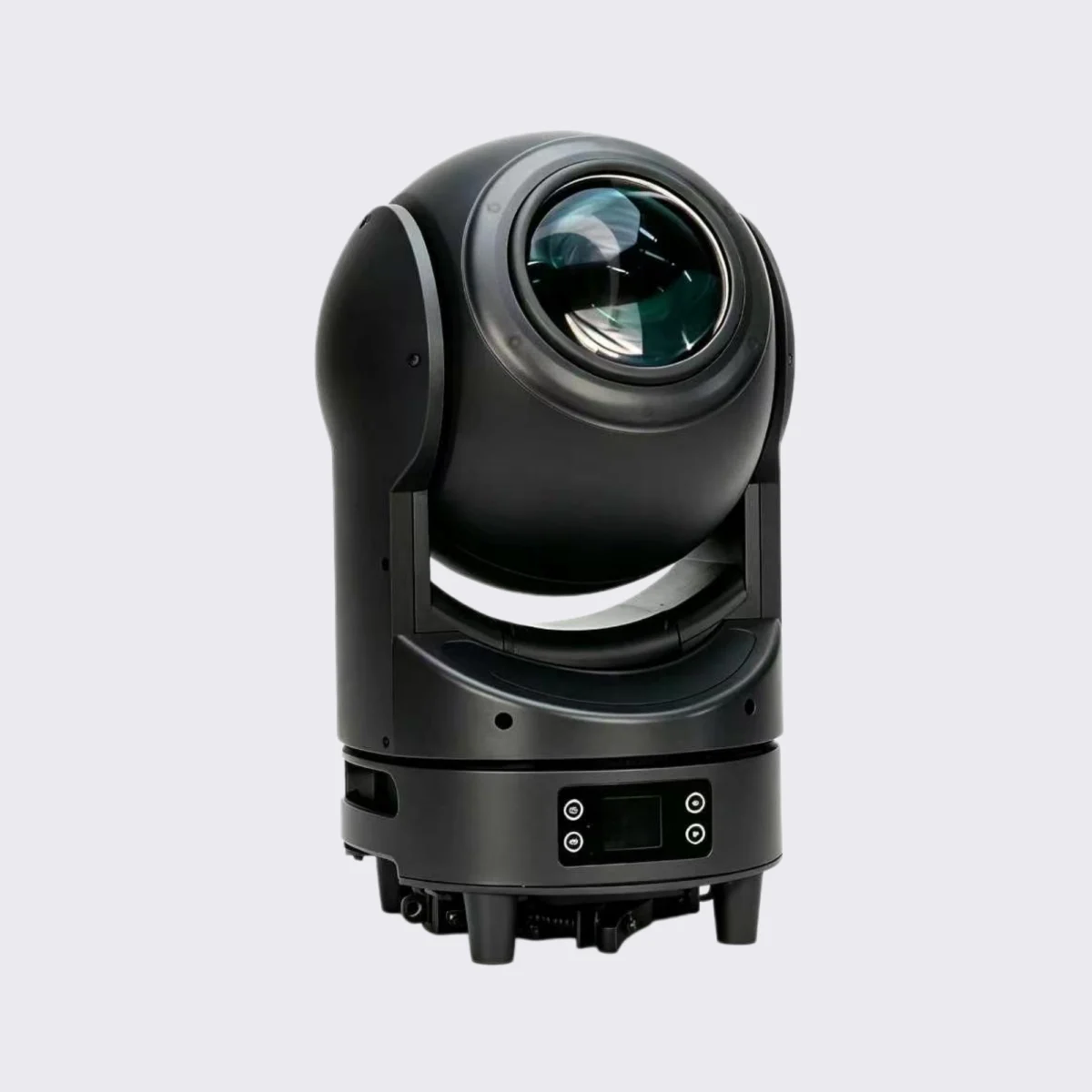

Joyfirst IP65 Mini Laser Beam 120W CMY Moving Head with LED Ring
Professional IP65 laser beam moving head with LED ring, 1.2° ultra-narrow beam, CMY color mixing, endless pan/tilt, and DMX/RDM control.
Features
- Premium Quality
- Worldwide Shipping
Technical Specifications
Light Source
- Light Source: 120W Laser Engine + 36 × 0.5W RGB 3-in-1 LEDs
- Rated Life Span: ≥20,000 hours
Optical System
- Lens Diameter: 126 mm
- Beam Angle: 1.2°
- Linear Focus: 0–100%
- Linear Frost: 0–100%
Strobe & LED Control
- Strobe Rate: 1–25 Hz
- Adjustable LED Frequency: 600 Hz – 24,000 Hz
Color System
- Color Wheel: 15 colors + open
- CMY Color Mixing System
Gobo System
- Static Gobo Wheel: 29 static gobos + open
Prism & Special Effects
- 6-linear prism
- 8-facet rotating prism
- Bi-directional rotation with variable speed
Movement
- 360° endless pan & tilt
- 16-bit high-resolution pan/tilt
- Smooth and precise movement
Control & Programming
- Control Modes: DMX512, Master/Slave, Auto, Sound Activated
- RDM Support
- DMX Channel Modes: 33 / 41
- DMX Connector: 3-pin IP-rated XLR in/out
- Software Update: Via DMX connector
- Sleep Mode: Automatic standby when DMX signal is disconnected
Electrical & Connections
- Input Voltage: AC 110–240V, 50/60Hz
- Power Consumption: 160W
Construction & Protection
- Housing Material: Die-cast aluminum alloy + plastic
- Protection Rating: IP65 (Waterproof)
Environmental Conditions
- Operating Temperature: -20°C to 45°C
Applications
- Outdoor stages and festivals
- Touring productions
- Architectural and permanent installations
- Theatres and large-scale venues
Dimensions & Weight
- Product Size: 280 × 268 × 429 mm
- Packing Size: 545 × 375 × 380 mm
- Net Weight: 16.95 kg
- Gross Weight: 18.90 kg
| Light Source | LED |
|---|---|
| Light Source Power | 201W-300W |
