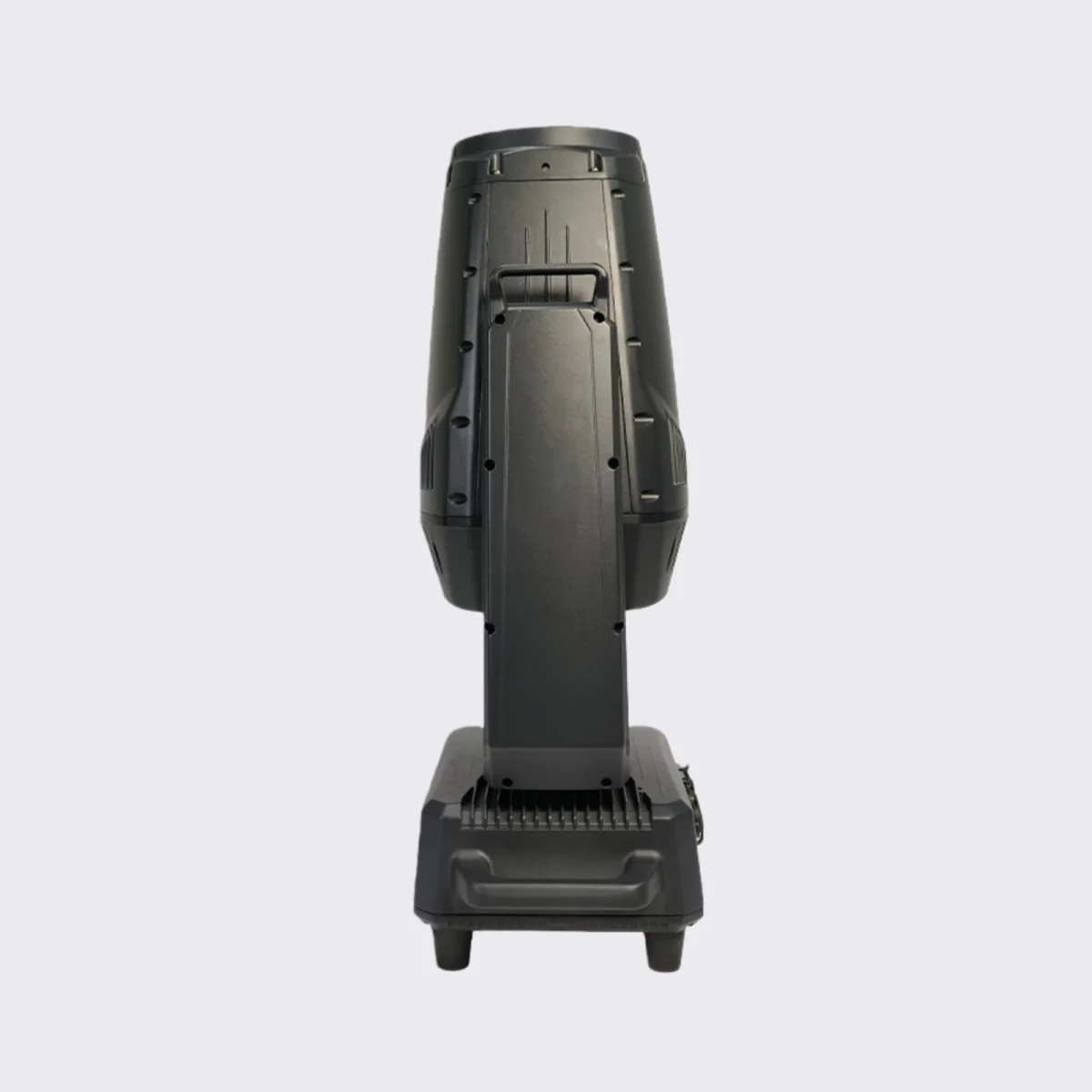

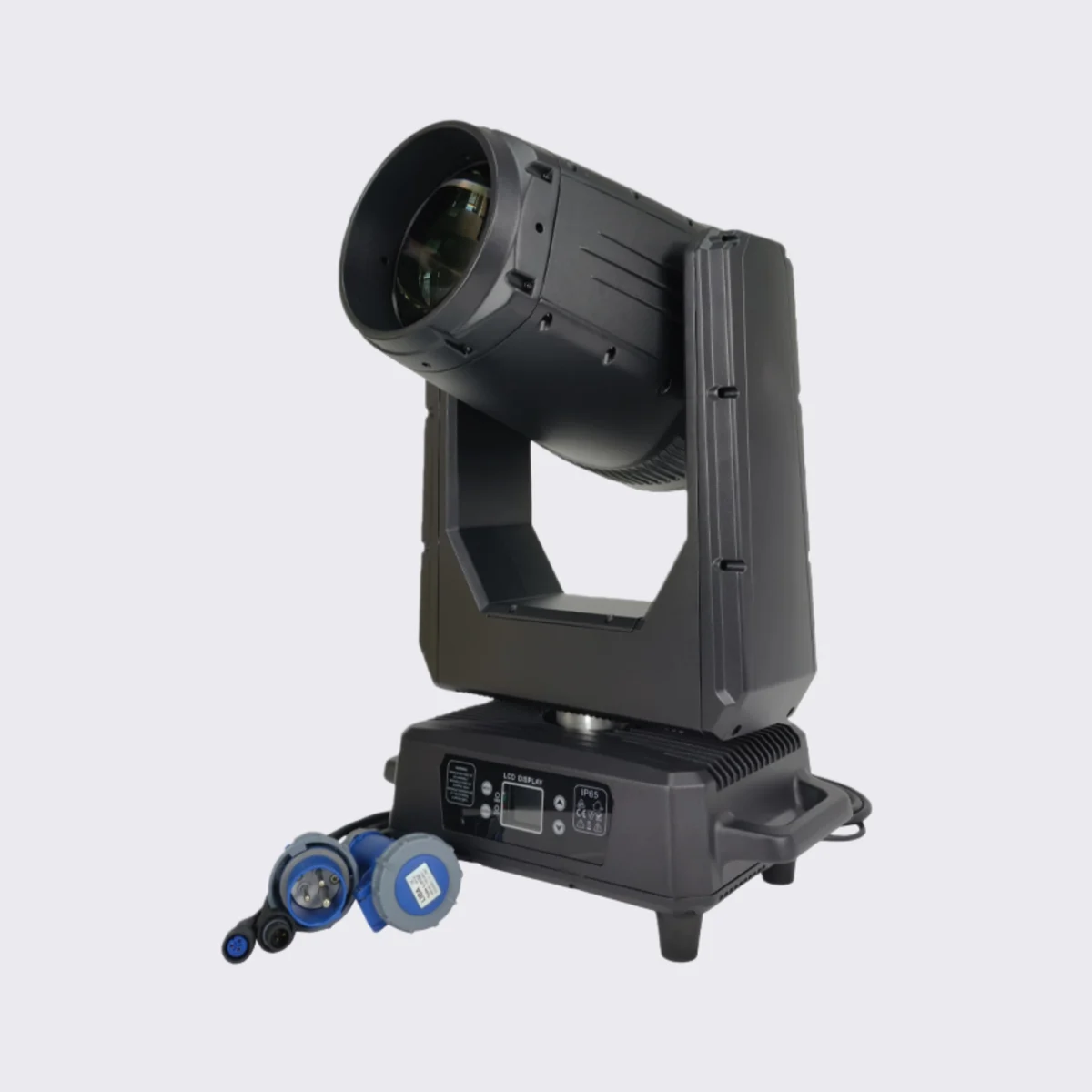

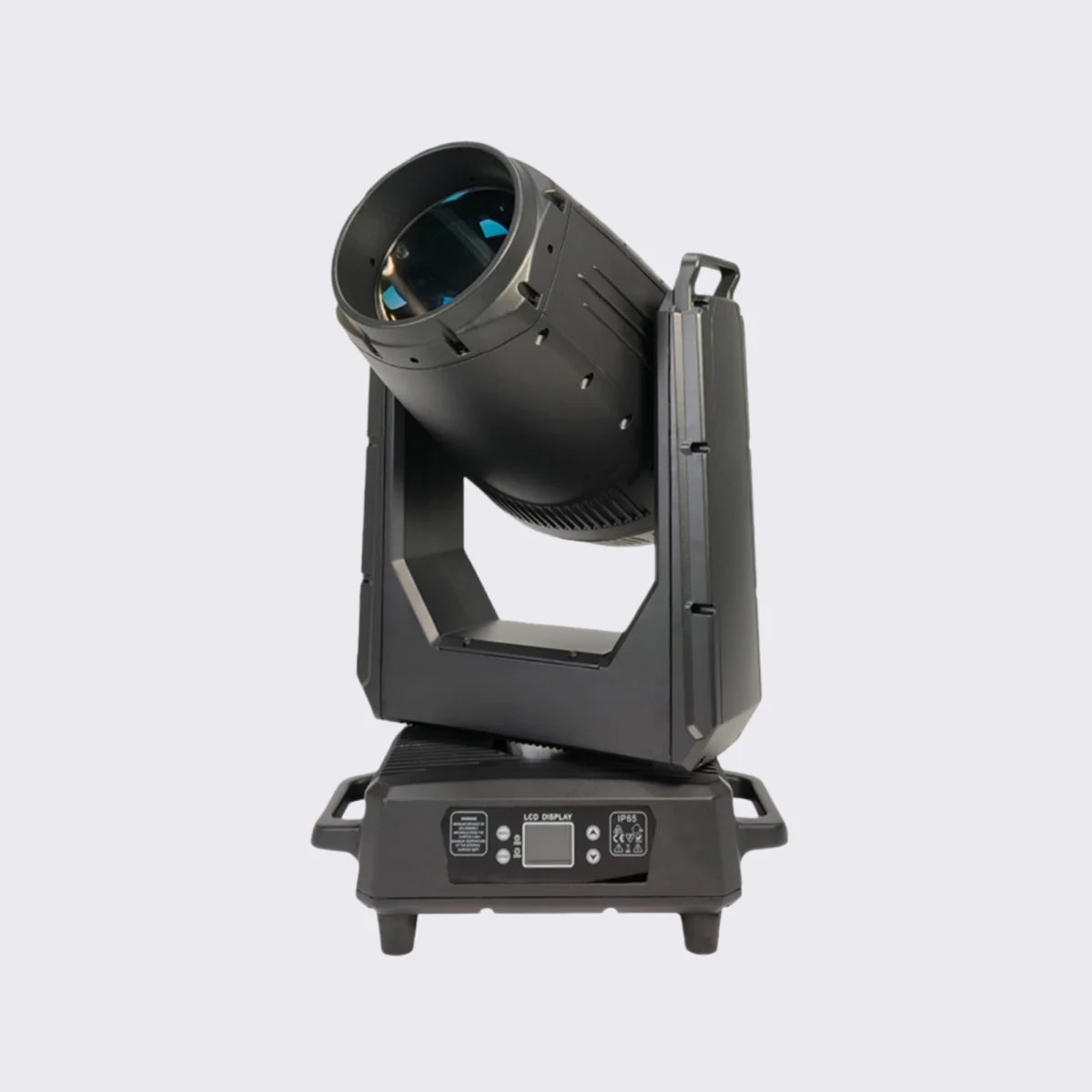

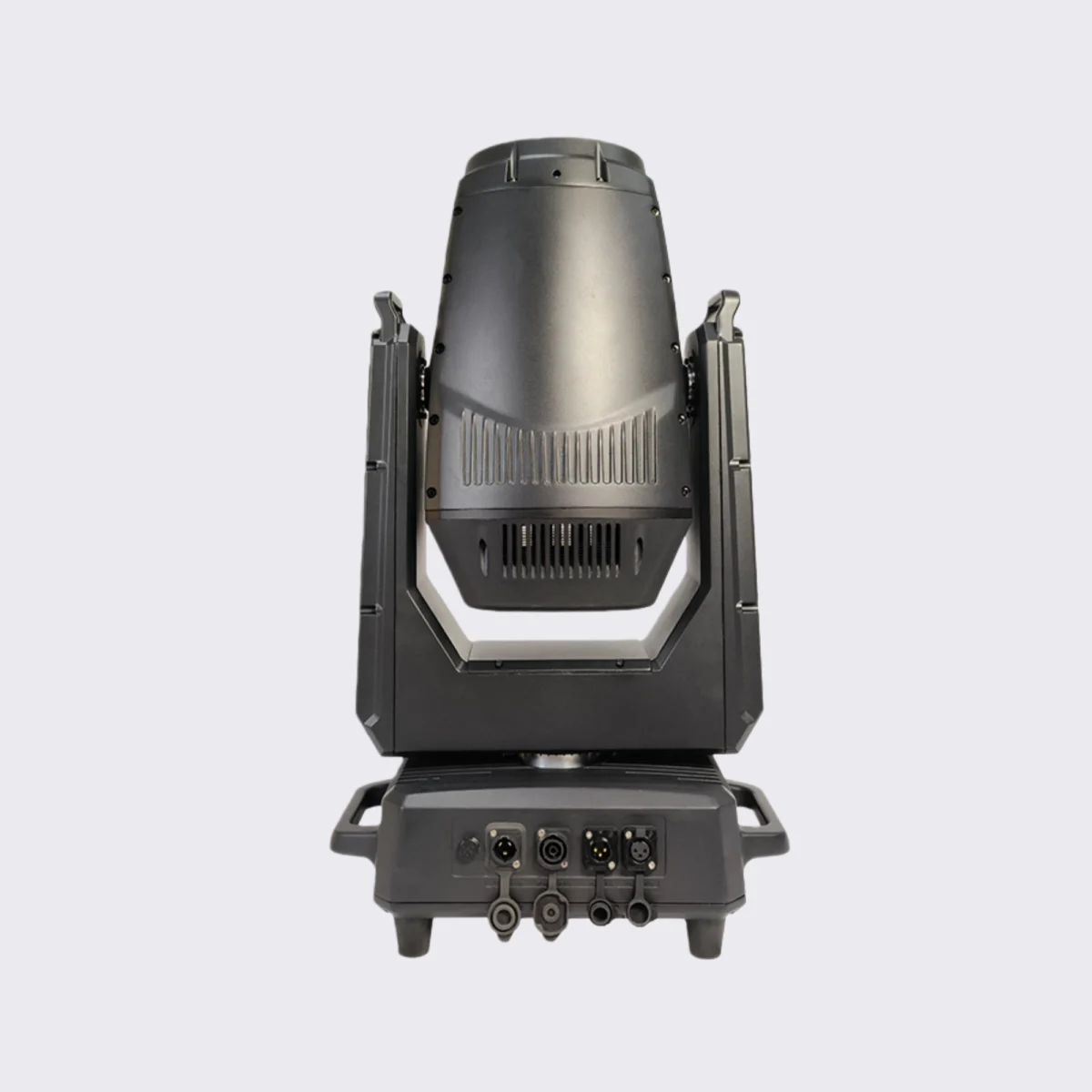

Joyfirst 380W IP66 Beam Moving Head for Outdoor Stage Lighting

Light Source & Optics

• Light Source: 420W long-life gas discharge lamp
• Color Temperature: 7800K
• Light Outlet Diameter: 160 mm
• Illuminance: 300,000 lux @ 15 m
• Beam Angle: 1.6°
• Lamp Life: Up to 3,000 hours

Effects & Optics

• Electric focus
• Frost system with atomized glass
• Smooth dimming: 0–100%
• Strobe Rate: 0–20 Hz

Color System

• Color Wheel: 13 colors + open (white)

Gobo System

• Fixed Gobo Wheel: 17 static gobos

Prism Effects

• 8-facet prism
• Honeycomb prism
• Prism overlay supported

Movement

• Pan: 540°
• Tilt: 270°

Control & Interface

• Control Protocols: DMX512, RDM
• DMX Channels: 18
• Touch control interface
• Remote lamp on/off control
• Fan speed and lamp usage time display

Electrical & Connections

• Input Voltage: 90–240V AC, 50/60Hz
• Total Power Consumption: 550W
• Power Factor: 0.95
• Power Connection: Waterproof power connector in/out
• Signal Connection: 3-pin or 5-pin waterproof connectors

Construction & Protection

• Housing Material: Magnesium alloy
• Cooling System: Air cooling + die-cast magnesium alloy heat sink
• Finish: Black outdoor coating
• Protection Rating: IP66

Environmental Conditions

• Operating Temperature: -20°C to 45°C

Dimensions & Weight

• Fixture Size: 415 × 240 × 706 mm
• Net Weight: 21 kg

Standard Configuration

Safety rope ×1

Folding integrated mounting hook

Power cable ×1

DMX cable ×1
